Data-driven framing and practical stakes
Operators need clear, measurable limits when they design bulk storage control loops. This piece uses measured latency and register-polling behavior to show where Modbus TCP between a BMS and an EMS becomes a bottleneck. It also highlights how a modern hybrid inverter fits into timing budgets for islanding, fast frequency response, and state-of-charge coordination. The tone is concise and practical, and the goal is to help engineers define engineering constraints rather than guess them.
Why Modbus TCP latency matters for control integrity
Modbus TCP is simple and widespread, but it was never designed for sub-cycle control. When BMS telemetry, SOC, and trip flags arrive late, the EMS may issue commands that no longer match the battery state. That mismatch raises risk: missed setpoints, delayed charge/discharge handoffs, and in severe cases unnecessary protective trips. Hornsdale Power Reserve in South Australia showed how fast battery response benefits grid stability; the lesson is clear—communication timing maps directly to system performance. Use terms like BMS, EMS, Modbus TCP, and latency explicitly when you write timing specs so teams share one measurable language.
Measured constraints and typical polling patterns
Field measurements commonly show three polling regimes: 500–2000 ms (slow supervisory), 100–500 ms (control envelope), and 10–100 ms (near-real-time). For bulk storage that participates in fast reserve, the EMS-BMS link should not rely on 500+ ms polling for critical status. Register polling strategy matters too—poll wide blocks less frequently, and poll high-priority registers (trip, inverter lockout, SOC) with tighter cadence. Real deployments report that when critical registers are refreshed at 100–200 ms, event handling improves significantly; slower refresh rates increase latency variance and packet collisions on shared networks.
Operational production teardown: what to watch for
In an operational production teardown you will inspect register maps, transaction IDs, and retry logic. Capture {main_keyword} and {variation_keyword} in your logs to correlate application-layer delays with network-level jitter. Look for these red flags: large contiguous reads for non-critical data, single-threaded polling agents, and lack of exponential backoff on retries. A brief replay of captured Modbus TCP traces will reveal whether delays stem from network queuing, BMS CPU load, or EMS scheduling.
Design trade-offs and common mistakes
Design choices force trade-offs among bandwidth, determinism, and implementation complexity. Common mistakes include:
– Treating Modbus TCP as deterministic rather than best-effort. This causes surprise under load.
– Polling too many registers at a high rate instead of prioritizing status and alarms.
– Ignoring network isolation for control traffic; VLANs and QoS matter for predictable latency.

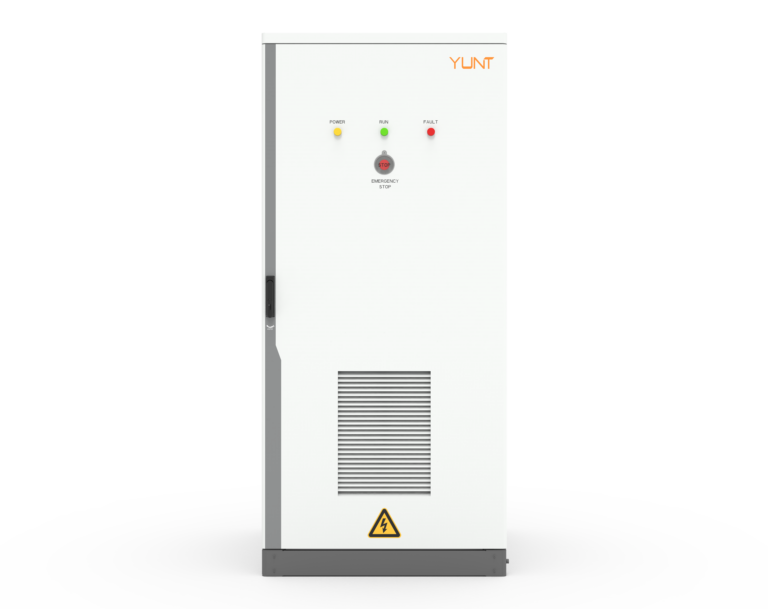

Choose a hybrid inverter supplier that supports event-driven reporting and flexible register maps—this reduces unnecessary polling and shrinks latency budgets. Also consider SOC smoothing and hysteresis in the EMS to avoid chasing noisy telemetry—this reduces command chatter without sacrificing accuracy.
Implementation checklist for reliable timing
Follow these concrete steps when you set latency limits and test them in the field:
– Define critical registers and require sub-200 ms refresh for those paths.
– Use grouped reads for low-priority telemetry and event-driven writes for alarms.
– Run stress tests with background traffic to measure 95th-percentile latency, not just averages.
– Implement retry jitter and exponential backoff so one faulty node does not flood the bus.
Advisory close: three golden rules
1) Metric-first specs: require a 95th-percentile Modbus TCP register polling latency target (for example, ≤250 ms for critical registers) and enforce it with acceptance tests. 2) Priority and eventing: prioritize trip and SOC registers; supplement polling with event-driven reporting where the BMS supports it. 3) Network determinism: isolate control traffic, use QoS, and test under realistic load to surface jitter and packet loss. These rules give measurable, repeatable outcomes for commissioning.
Final thought—good timing is not optional; it defines how well the storage system serves the grid and the people who run it. – YUNT
